System on Modules – large product variety and long availability.
System on Modules are circuit boards that combine the most important elements of a computer in a very small space. The elements include: Microprocessor, Flash memory, storage technologies such as RAM and DRAM, NVRAM, clock management and power management. System on Modules typically contain peripheral functions that are integrated into the microprocessor system on chip (SOC). Application-specific functions such as I/O connections are implemented on the carrier board.
The benefits of System on Modules include fast, more flexible hardware development, lower system cost, and the ability to upgrade the processor.
Below you will find a wide selection of System on Modules differentiated by CPU, RAM, and I/O and display interfaces.
VEX2-DIP168
| Vortex86EX2- 600MHz mit bis zu 10xCOM (Max.), 2xUSB, LAN, LPT, 2xCAN, 212C, 16ADC 12bit, HDA, 2PCIE 1x, 120GPIO, SD or eMMC, support ISA bus |
| 512MB / 1GB DDR3 onboard |
| Operation temperature:-20 ~ +70°C / optional -40 ~ +85°C |
| Optional: Onboard eMMC / MicroSD socket / Touch Controller |

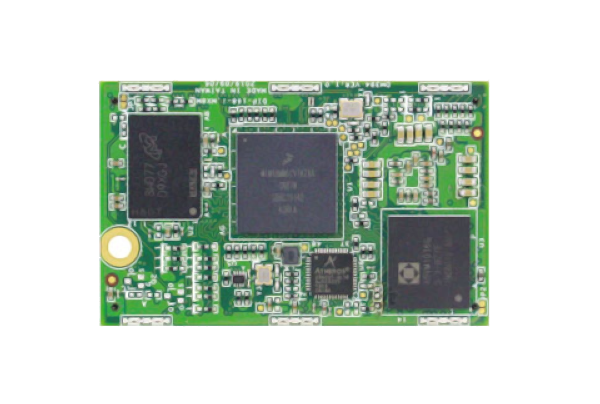

NX8MM-D168
| NXP i.MX8M Mini-1.6GHz up to 4xCOM, 2xUSB, MIPI-DSI, MIPI-CSI, GLAN, 4PWM, 3I2C, 3SPI, 3I2S&SAI, S, PDIF, PCIe, 40x GPIO (max.) |
| 2GB/4GB LPDDR4 onboard |
| Operation temperature -20 ~ +70°C, optional -40°C +85°C (optional) |
| Onboard 4GB~64GB eMMC / Micro SD socket (optional) |
VEX-SOM
| Vortex86EX- 400MHz up to 1xCOM, 2xUSB, LAN, LPT, 24PWM, i2c, SPI, Audio, PCIe, ISA, GPIO, SATA, 8ADC |
| 128MB DDR3 onboard |
| -20 ~ +70°C operation temperature, optional -40°C bis +85°C |
| Optional with Audio, CAN, LTP, eMMC, USB device, MCM |
SOM304RD
| Vortex86DX- 800MHz up to 5xCOM, 4xUSB, 1xVGA, LCD, LAN, LPT, 32 GPIO, PWM, IDE, Standard ISA Bus, support LCP Bus |
| 256MB / 512MB DDR2 onboard |
| -20 ~ +70°C operation temperature, optional -40°C bis +85°C |
| Optional: Onboard Flash up to 4GB, up to 32 PWM |
