Tiny SBC – wide range with long availibility.

A Tiny Single Board Computer is a motherboard in a very compact 100 x 66mm form factor where the microprocessor, input/output functions, memory and other functions are implemented on a single board.

Below you will find a wide selection of small embedded computer boards that are ideal for building robust embedded, panel, mini PC or box PC systems. Small embedded computer boards can save a lot of space.

The models differ by CPU, RAM, I/O and display interfaces.

VEX2-6415

Vortex86EX2- 600MHz up to 4xCOM, 3xUSB, 2xLAN, LPT, 16GPIO, MicroSD
512MB / 1GB DDR3 onboard
Operation temperature: -20~ +70°C / -40 ~ +85°C (Optional)

VDX2-6518

Vortex86DX2-800MHz up to 4xCOM, 2xUSB, 1xVGA, LVDS, LAN, LPT, 8GPIO, PWM, SD or eMMC, Onboard 4MB SPI Flash Disk
512MB / 1GB DDR3 onboard
Operation temperature: -10~+60°C
Optional：Onboard Flash Disk / SD Socket / 8GPIO

VDX-6318RD

Vortex86DX-800MHz up to 4xCOM, 4xUSB, 1xVGA, LCD, LAN, Audio, 32GPIO, IDE, Onboard 4MB SPI Flash Disk
256MB / 512MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)

VDX-6314RD

Vortex86DX-800MHz up to 4xCOM, 2xUSB, 1xVGA, LVDS, LAN, 16GPIO, IDE, Onboard 4MB SPI Flash Disk
256MB / 512MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)
Optional：Audio

VDX-6315RD

Vortex86DX-800MHz up to 4xCOM, 2xUSB, LAN, LPT, 32GPIO, IDE, Onboard 4MB SPI Flash Disk, 16bit x-ISA
256MB / 512MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)
Optional：512KB SRAM

VDX-6316RD

Vortex86DX-800MHz up to 2xCOM, 2xUSB, LPT, 32GPIO, IDE, Onboard 4MB SPI Flash Disk, 16bit x-ISA
256MB / 512MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)
Optional：512KB SRAM

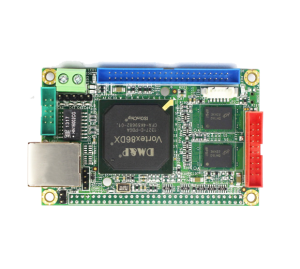

VDX-6317RD-X

Vortex86DX-800MHz up to 1xS, LAN, 16GPIO, PWM, IDE, Onboard 2MB SPI Flash Disk, 16bit x-ISA
256MB / 512MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)

VSX-6118-V2

Vortex86SX-300MHz up to 4xCOM, 4xUSB, 1xVGA, LCD, LAN, Audio, 32GPIO, IDE, Onboard 2MB SPI Flash Disk
128MB / 256MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)

VSX-6114-V2

Vortex86SX-300MHz up to 4xCOM, 2xUSB, 1xVGA, LVDS, LAN, 16GPIO, IDE, Onboard 2MB SPI Flash Disk
128MB / 256MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)
Optional：Audio

VSX-6115-V2

Vortex86SX-300MHz up to 4xCOM, 2xUSB, LAN, LPT, 32GPIO, IDE, Onboard 2MB SPI Flash Disk, 16bit x-ISA
128MB / 256MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)
Optional：512KB SRAM

VSX-6116-V2

Vortex86SX-300MHz up to 2xCOM, 2xUSB, LPT, 32GPIO, IDE, Onboard 2MB SPI Flash Disk, 16bit x-ISA
128MB / 256MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)
Optional：512KB SRAM

VSX-6117-X-V2

Vortex86SX-300MHz up to 1xCOM, LAN, 16GPIO, PWM, IDE, Onboard 2MB SPI Flash Disk, 16bit x-ISA
128MB / 256MB DDR2 onboard
Operation temperature: -20~+70°C / -40°C~+85°C (Optional)
